Original MS830L Multimeter

Feature

● DC Voltage: 200mV, 2V, 20V, 200V. 600V
● AC Voltage: 200V, 600V.
● DC Current: 200uA, 2mA, 20mA, 200mA, 10A
● Resistance: 200Ω, 2KΩ, 20KΩ, 200KΩ, 20MΩ, 200MΩ
● Diode and Continuity Test.
● CAT III 600V.
● Data Hold.
● Backlight.

Mastech MS830L Digital Multimeter: Multifunctional Electrical Test Tool

The Mastech MS830L Digital Multimeter is a reliable and versatile tool designed for measurement of electrical parameters. Ideal for both professionals and hobbyists, this multimeter offers a comprehensive range of features to meet various testing needs.

Key Features:

• Multifunctional Measurement: Measures AC/DC voltage, DC current, resistance, and continuity.
• Manual Ranging Capability: Selects the appropriate measurement range manually.
• Max Display: 2000 counts.

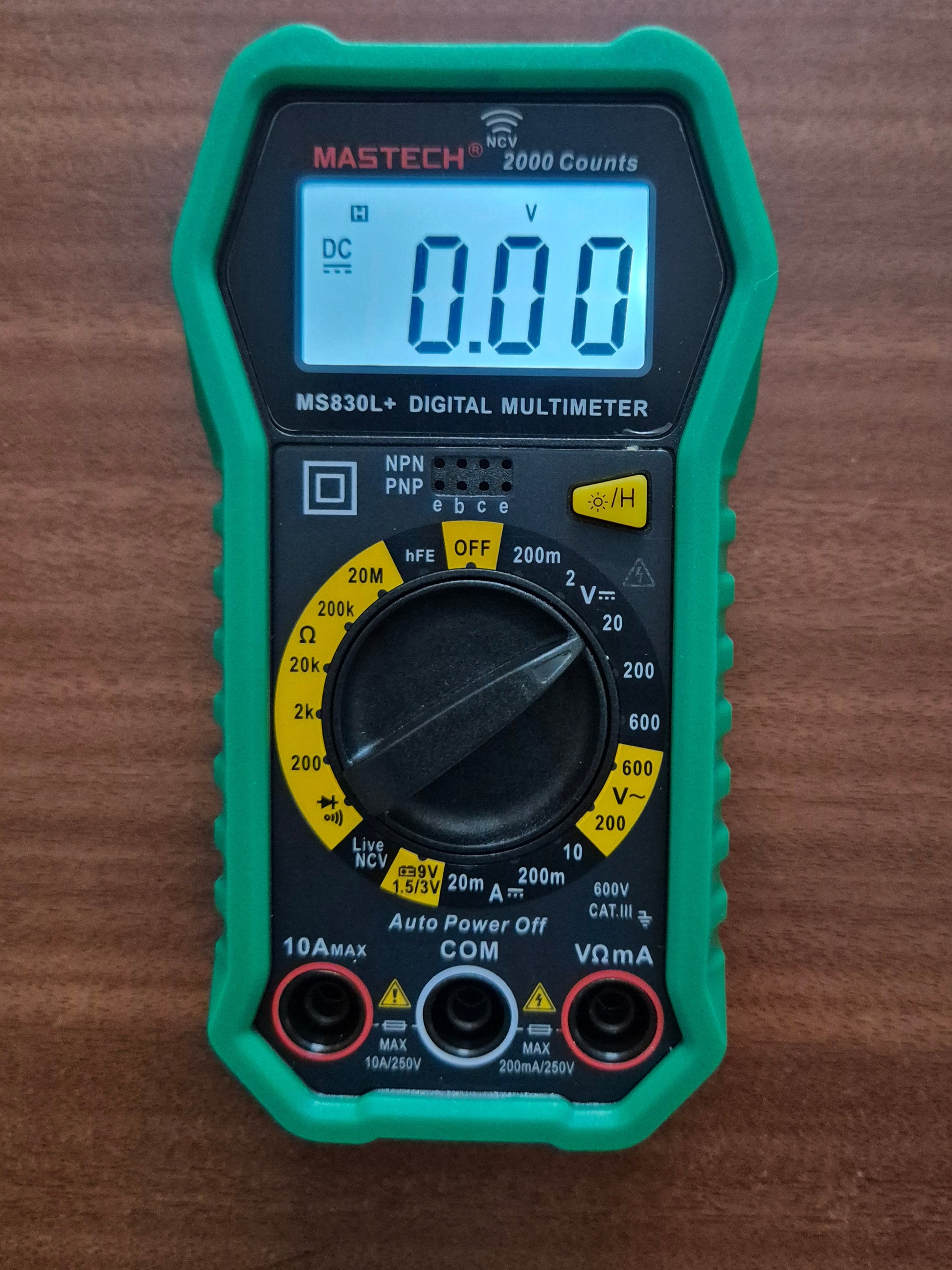

• Backlight: Easy to read in dim environments.
• Data Hold Function: Freeze the displayed measurement for easier recording and analysis.
• Safety and Durability: Equipped with CAT III 600V safety ratings.
• Additional Features: Includes diode test and continuity buzzer.

Specifications

• Resistance Measurement:
• Ranges: 200Ω, 2KΩ, 20KΩ, 200KΩ (±1.0%+5), 20MΩ (±1.2%+8), 200MΩ (±5.0%+10)
• DC Voltage Measurement:
• Ranges: 200mV, 2V (±0.5%+3), 20V, 200V (±0.8%+3), 600V (±0.8%+5)
• AC Voltage Measurement:
• Ranges: 200V, 600V (±1.0%+10)
• DC Current Measurement:
• Ranges: 200uA, 2mA, 20mA (±1.0%+5), 200mA (±2.0%+5), 10A (±3.0%+5)

Benefits

• User-Friendly Interface: Simple operation with a clear display and intuitive controls, making it accessible for all users.
• Versatile Applications: Suitable for a wide range of electrical testing needs, from professional to DIY projects.
• Safety Features: Includes overload protection and a CAT III 600V rating, ensuring safe operation in high voltage environments.
• Convenient Data Handling: Features like data hold and backlight enhance usability in different conditions, making it easier to work in various environments.

Why Choose Mastech MS830L?

The Mastech MS830L Digital Multimeter combines versatility, and ease of use, making it an essential tool for anyone working with electrical systems. Its robust feature set and reliable performance ensure you can tackle any electrical testing task with confidence.
